Your HVAC system does more than just heat and cool your home—it also removes excess moisture from the air. This moisture is drained away through a condensate drain line, ensuring that your system runs efficiently and your home stays dry. However, when drain lines are installed incorrectly, they can cause major issues like water damage, mold growth, and system failures.
The problem? Many HVAC drain lines aren’t installed properly from the start. Mistakes like improper slopes, missing vents, and lack of cleanout access make drain lines prone to clogs and water backups.
What’s worse, when homeowners call a professional to clear a simple clog, they may be hit with an outrageous bill—some companies charge up to $750 just to clear a blocked drain line.
The good news is that many of these issues can be avoided with proper installation, and in some cases, homeowners can fix drain line problems themselves without an expensive service call.
Let’s take a closer look at how a drain line should be installed and where things often go wrong.
Table of Contents

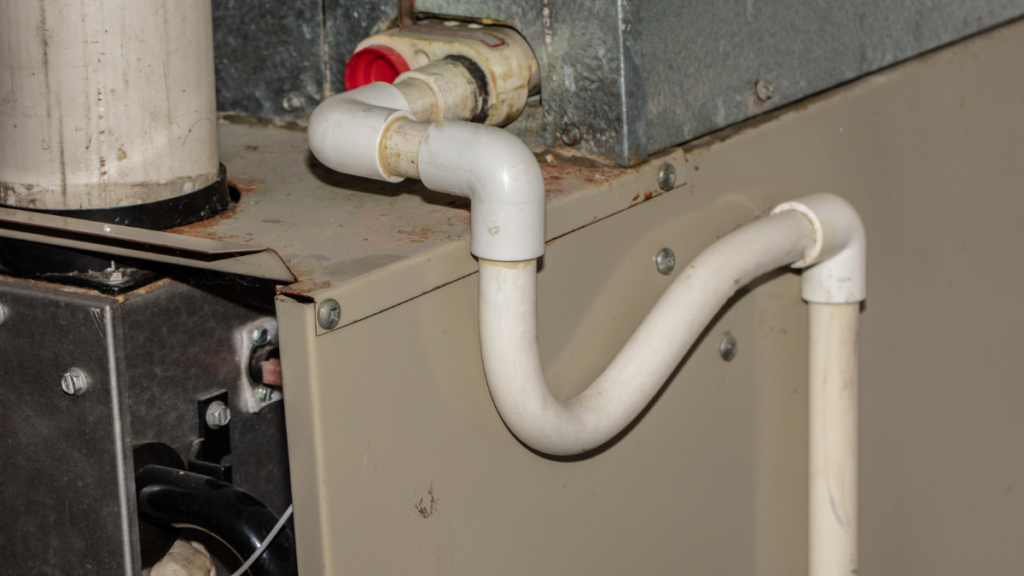

How Drain Lines Should Be Installed (and Common Installation Mistakes)
A properly installed HVAC drain line ensures moisture flows freely away from the system, preventing clogs, leaks, mold growth, and system inefficiencies. However, many drain lines are installed incorrectly, leading to water backups, system failures, and costly repairs.
To avoid these issues, a drain line should:
- Have the correct slope – At least ¼ inch per foot to allow gravity to move water efficiently. An improper slope can cause water to pool, leading to blockages and mold growth.
- Include a cleanout access point – This allows for easy inspection and clearing of clogs. Without a cleanout, removing blockages often requires professional service.
- Feature a vent or air gap – Proper ventilation prevents vacuum pressure from trapping water inside, which can lead to standing water and mold. A lack of ventilation can slow drainage and cause recurring clogs.
- Be made of durable PVC piping – Flexible tubing can sag over time, restricting drainage and increasing the likelihood of blockages. Using high-quality PVC ensures long-term durability.
- Drain to an appropriate location – The line should empty outside the home or into a designated drainage system. Some improperly installed drain lines discharge into attics or crawlspaces, leading to water damage and structural issues.
By ensuring proper installation, homeowners can avoid frequent drain line clogs and expensive service calls, keeping their HVAC system running efficiently.
Signs of a Clogged or Improperly Installed Drain Line
A clogged or incorrectly installed drain line can cause a range of issues that affect both your HVAC system and your indoor air quality. Recognizing these warning signs early can help you take action before the problem leads to costly repairs.
1. Water Pooling Near the HVAC Unit or Around the Drain Pan
One of the most obvious signs of a clogged drain line is water accumulation around your HVAC system. The drain pan is designed to catch excess condensation, but if the drain line is blocked, water has nowhere to go. This can lead to overflowing water, potential water damage, and even mold growth in the surrounding areas.
2. Mold or Mildew Smells Coming from Vents
If your HVAC system is blowing air that smells musty or damp, this could indicate stagnant water sitting in the drain line or drain pan. When water doesn’t drain properly, it creates the perfect environment for mold and bacteria to grow, which then circulates through your home’s air.
3. AC Shutting Off Unexpectedly Due to Safety Triggers
Most modern HVAC systems include a safety shutoff switch that activates when it detects a clogged drain line. If your AC suddenly stops running and won’t turn back on, check the drain pan. If you see standing water, the system likely shut itself down to prevent overflow and potential water damage.

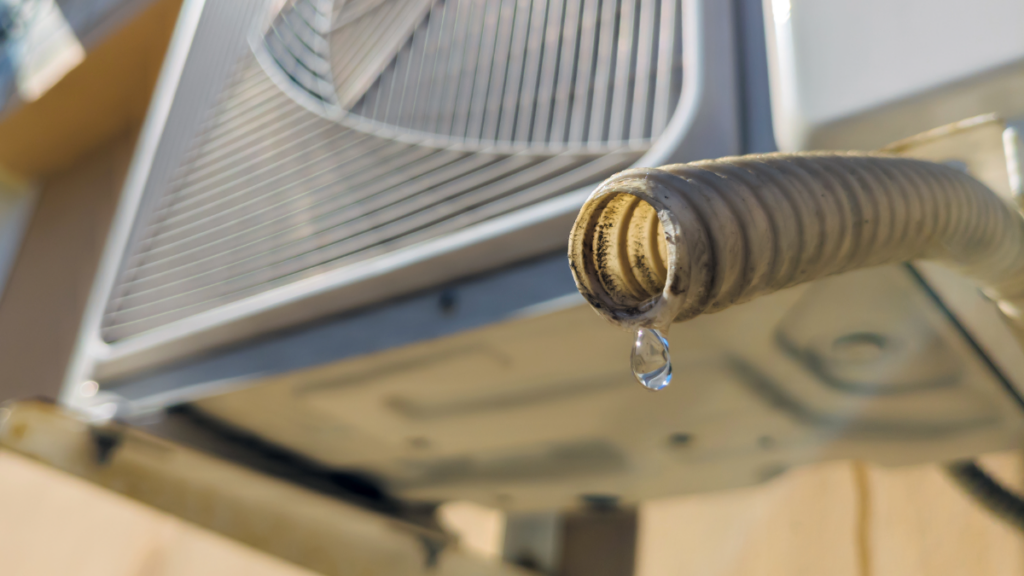

4. Visible Algae or Debris Buildup in or Around the Drain Line
Over time, algae, dirt, and other debris can accumulate inside the drain line, forming blockages. If you notice slimy buildup, white or green residue, or standing water near the drain line, it’s a clear sign that the line is clogged and needs to be cleared.
If you notice any of these issues, you may be able to clear the blockage yourself before calling for professional service. Here’s how:
DIY Fix: How to Clear a Clogged Drain Line
Before calling an HVAC technician, try this simple step-by-step process to safely clear a clogged drain line. Many homeowners find that this quick fix saves them hundreds of dollars on unnecessary service calls.
Tools You’ll Need:
- Wet/Dry Vacuum – Used to suction out debris from the drain line.
- Vinegar or Warm Water Solution – Helps break down buildup and prevent future clogs.
- PVC Pipe Cleaner or Flexible Drain Brush – Useful for dislodging stubborn debris.
Step 1: Turn Off the HVAC System
For safety, shut off power to your HVAC unit at the thermostat and breaker panel. This prevents accidental damage and ensures safe handling.
Step 2: Locate the Drain Line and Check for Visible Blockages
Find the PVC drain line, usually located near the indoor air handler unit. Inspect the end of the line outside your home—if you see water dripping, the line may be partially clogged. If no water is draining, the line is likely blocked.
Step 3: Use a Wet/Dry Vacuum to Clear Out Debris
Attach the vacuum hose to the drain line opening outside your home. Seal the connection using a towel or duct tape, then run the vacuum for 1-2 minutes to suck out blockages like dirt, algae, or mold buildup.
Step 4: Flush the Drain Line with a Vinegar/Water Mix
After vacuuming, pour a mixture of equal parts white vinegar and warm water into the drain line’s cleanout port or directly into the drain pan. Let it sit for 30 minutes to break down any remaining residue.
Step 5: Test the System and Monitor for Improvement
Once the drain line is cleared, turn the HVAC system back on and check for proper drainage. If water begins to flow normally from the drain line, you’ve successfully fixed the issue!
If the problem persists after trying these steps, it may be due to an improperly installed drain line or a more serious issue. In this case, it’s time to call a professional to assess and fix the problem.
When to Call a Professional
While many drain line clogs can be resolved with DIY methods, some situations require a professional’s expertise. If you’ve tried clearing the blockage and the problem persists, it’s time to call an HVAC technician. Here are a few key signs that indicate you need expert help:
1. The Drain Line Remains Clogged Despite DIY Efforts
If you’ve vacuumed, flushed, and cleaned the drain line but water still isn’t flowing properly, the clog might be too deep in the system to reach without specialized equipment.
Professional HVAC technicians have tools like high-pressure air blowers and drain line cameras to locate and remove stubborn blockages effectively.
2. You Notice Water Damage, Leaks, or Persistent Odors
A backed-up drain line can cause excess moisture to accumulate in and around your HVAC system. If you notice stained ceilings, warped flooring, or damp walls, your system may be leaking due to a severe clog.
Additionally, if musty or mildew smells persist even after cleaning the line, there could be hidden mold growth inside the ductwork or drain pan. Ignoring these issues can lead to costly repairs down the line.
3. Your HVAC System Keeps Shutting Off Due to a Drain Safety Switch
Modern HVAC systems have a safety switch that shuts the unit down if it detects a full drain pan or a blocked drain line. If your AC repeatedly turns off despite clearing the line, the float switch might be stuck, or there could be another underlying drainage issue affecting the system’s function. A technician can diagnose the problem and restore normal operation.
4. You Suspect the Drain Line Was Installed Incorrectly
Even if the drain line is clear, improper installation can lead to ongoing drainage issues. If you notice water backing up frequently, slow drainage, or no visible outlet for the water, the line might not have the proper slope, venting, or cleanout access. A professional can inspect the system and correct installation errors to prevent future clogs and water damage.
Custom Air Conditioning & Air Quality – Your Honest, Local HVAC Experts
At Custom Air Conditioning & Air Quality, we believe in empowering homeowners with knowledge, not overcharging for simple fixes.
Unlike companies that may charge up to $750 for something as simple as clearing a drain line, we focus on honest, fair-priced service and preventative maintenance to help you avoid costly problems in the first place.
We offer affordable maintenance plans designed to:
- Prevent drain line clogs before they happen.
- Keep your HVAC system running efficiently with regular coil cleanings, inspections, and adjustments.
- Provide VIP benefits like priority service and discounted repairs.
A clogged drain line doesn’t always require a professional service call—many homeowners can fix it themselves with basic troubleshooting. Before spending hundreds of dollars on unnecessary repairs, try vacuuming and flushing the drain line to remove simple blockages.
However, if you notice persistent clogs, leaks, mold growth, or HVAC shutdowns, it’s best to call in the experts to prevent further damage.
Routine HVAC maintenance is the best way to avoid drain line issues altogether, ensuring that your system operates at peak efficiency year-round.
